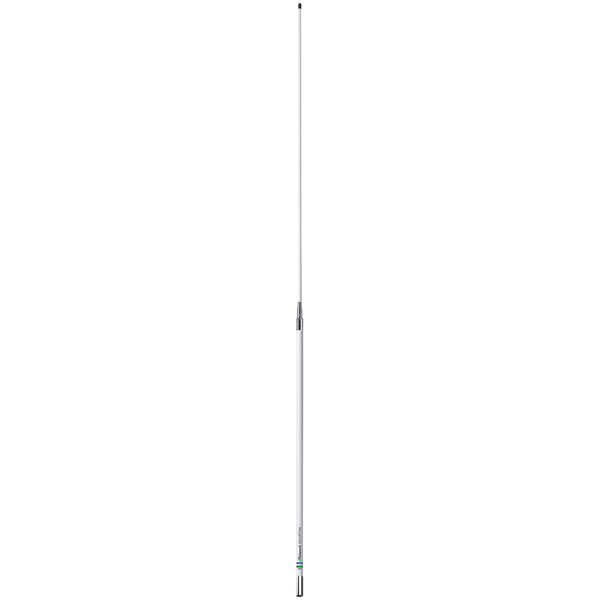

Shakespeare Galaxy® VHF Antenna 5018
Shakespeare’s Galaxy® VHF Marine Band Antennas have earned a reputation as the gold standard for performance and quality. Built with premium materials and expert craftsmanship, they deliver clear, dependable communication trip after trip. The 5018-RL model is engineered with thick brass and copper elements for enhanced range, clarity, and efficiency, paired with a corrosion-resistant stainless steel ferrule and a 20' RG-8X low-loss cable for optimal signal transmission.
Features
-
Heavy-duty brass and copper elements for maximum range, signal clarity, and efficiency
-
Marine-grade stainless steel ferrule resists corrosion
-
Non-yellowing white fiberglass with high-gloss polyurethane finish for lasting durability
-
3 MHz bandwidth within 2.0:1 VSWR for reliable performance
-
Includes 20' RG-8X low-loss cable and a solder-free, screw-on PL-259 connector
Specifications
-
Frequency: VHF Marine Band
-
Bandwidth: 3 MHz within 2.0:1 VSWR
-
SWR: 1.5:1 at 156.8 MHz
-
Max Input Power: 150W
-
DC Ground: No
-
Height: 15' 2"
-
Polarization: Vertical
