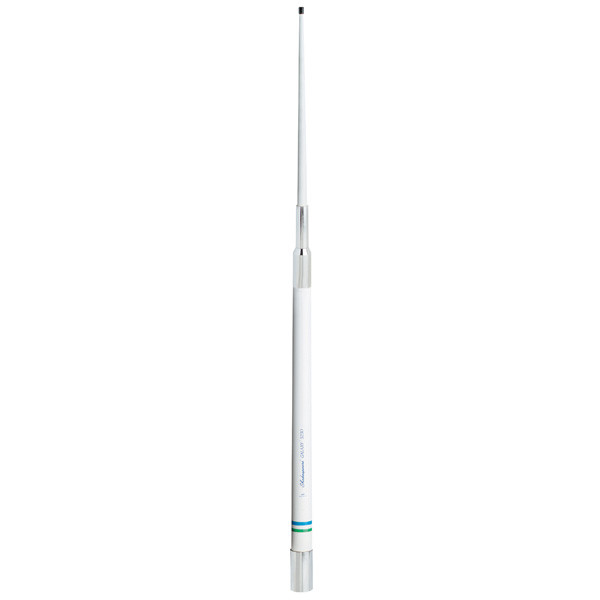

Shakespeare 14’ Galaxy® VHF Antenna 5230; 8dB

An increased signal capture area makes this the most effective 8dB antenna system available anywhere. 5/8 wave over 1/2 wave element. Lasting color and construction are yours thanks to the durable patented urethane finish. Two sections: Base 94", Tip 74"

Features

• 5/8-wave over 1/2-wave dipole for enhanced signal strength

• Premium brass and copper elements for maximum range and efficiency

• Two-section design: base 94", tip 74"

• Backed by a 5-year limited warranty

Specifications

• Model: Shakespeare 5230

• Length: 14'

• Sections: 2

• Color: Galaxy white

• Ferrule: Stainless steel with standard 1"-14 thread

• Cable Included: 20' RG-8/X

• Connector Included: PL-259 (not pre-installed)

• Suggested Mounts: Shakespeare 409-R or 410-R swivel mounts (sold separately)

• Band: VHF Marine Band

• Frequency Range: 156 – 164 MHz

• Gain: 8 dB

• Max Input Power: 200W

• SWR: Nominally 1.5:1 at 156.8 MHz

• Bandwidth: 3 MHz within 2.0:1 VSWR

• Impedance: 50 ohm

• Polarity: Vertical

• DC Ground: Yes

Note: When tested with an ohm meter, this antenna will read as a short circuit.
