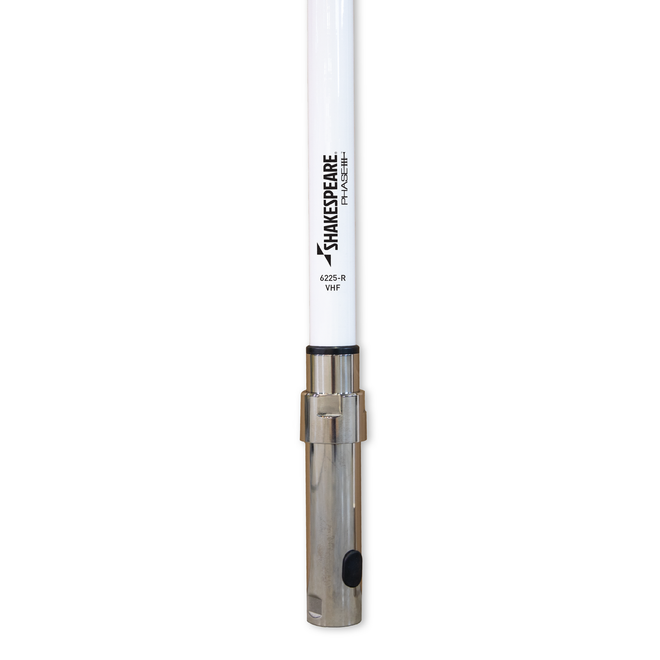

Shakespeare 8’ Phase III VHF Antenna 6225-R; 6dB

Shakespeare has shortened its classic 8' antennas to 93" to help reduce shipping costs—without compromising performance. These reduced-length models deliver the same outstanding specifications, range, and reliability as their full-length counterparts, making them a smart choice for boaters who want top-tier VHF communication in a slightly more compact form.

Features

• Antenna length: 93"

• Band: VHF Marine

• Gain: 6 dB

• Built for high performance and durability—resists high speeds and strong winds

• Foam-filled radome combines strength with a sleek, streamlined design

• Silver-plated outer conductor and copper inner conductor for superior signal transfer

• Stainless steel mounting sleeve for long-lasting corrosion resistance

• Internal SO-239 connector inside the mounting sleeve for easy mounting and quick removal for stowage

• Suggested Mount: Shakespeare 4187-HD Ratchet Mount (sold separately)

Specifications

• Design: Collinear-phased 5/8-wave elements

• Length: 93"

• Sections: 1

• Suggested Mounting: Shakespeare 4187-HD (sold separately)

• Mounting Options: Standard 1"-14 thread or mast mount via versatile mounting sleeve

• Material: High-strength fiberglass radome, foam-filled

• Finish: High-gloss, non-yellowing polyurethane

• Frequency Band: VHF Marine

• Gain: 6 dB

• SWR: Less than 1.5:1 at 156.8 MHz

• Bandwidth: 3 MHz within 2.0:1 VSWR

• Impedance: 50 ohm (nominal)

• Max Input Power: 150W

• Pattern: Omnidirectional

• Polarization: Vertical

• DC Grounding: Yes

• Warranty: Shakespeare Limited Warranty — 5 years
