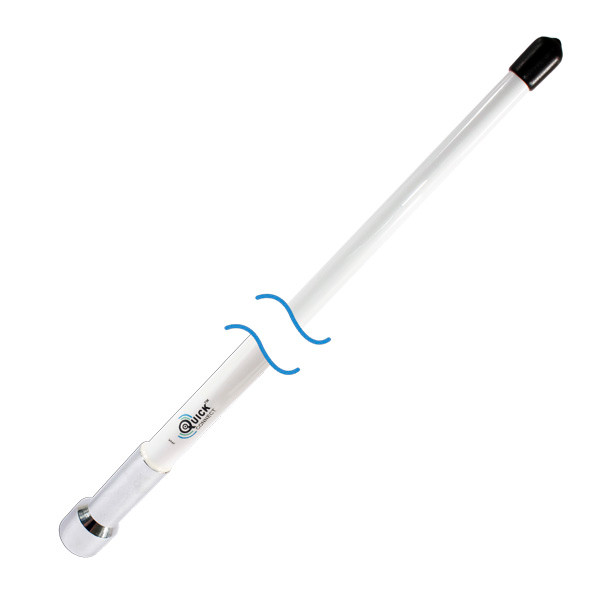

Shakespeare VHF Radio Antenna QuickConnect QC-4
QuickConnect product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas. Originating from the popularity of the quick connecting feature on Shakespeare's high-end Phase III® marine antennas.
Features:
- QuickConnect
- Unscrew or screw antenna to disconnect or connect
- High quality connection
- No noise generated due to vibrations
- Hanging dust protection cap
- Protect the connector on the mount when antenna is disconnected
- Water protection cap
- Cap stays fastened to mount to prevent it from getting lost
- Centerpin PL-259-CP-G Connector
- Easy crimp-on type connector Standard mount design
- 15' Cable Sold Separately with QuickConnect Antenna Mount
4' Specifications:
- Frequency Band: VHF Marine
- Height: 4 feet (1.21 meter)
- Gain: 3 dB
- Max. Input Power: 50W
- Ferrule: Chrome-Plated Brass
- VSWR: <1.5:1 at 156.8 MHz
- Bandwidth: 5 MHz within 2.0:1 VSWR
- SWR: Nominally 1.3:1 at 156.8 MHz
- Color/finish: White Fiberglass
- Polarization: Vertical
- Impedance: 50 Ohms (with QC Mount attached)
- DC Ground: No DC Ground – The antenna will read open on continuity test
- Shakespeare Limited Warranty: 2 years
